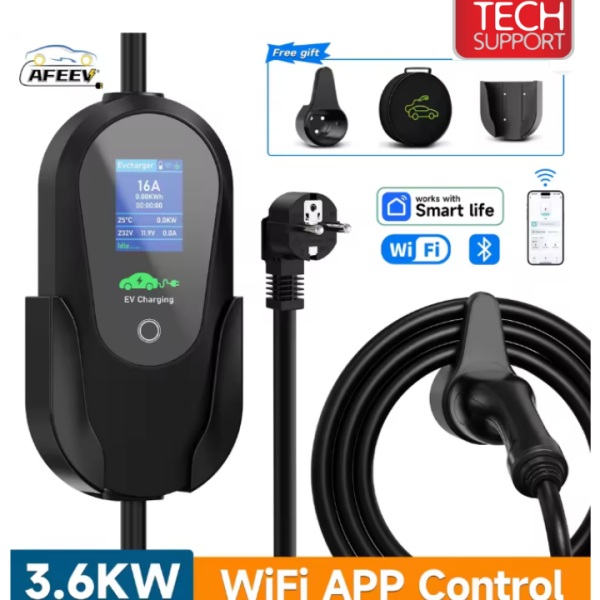

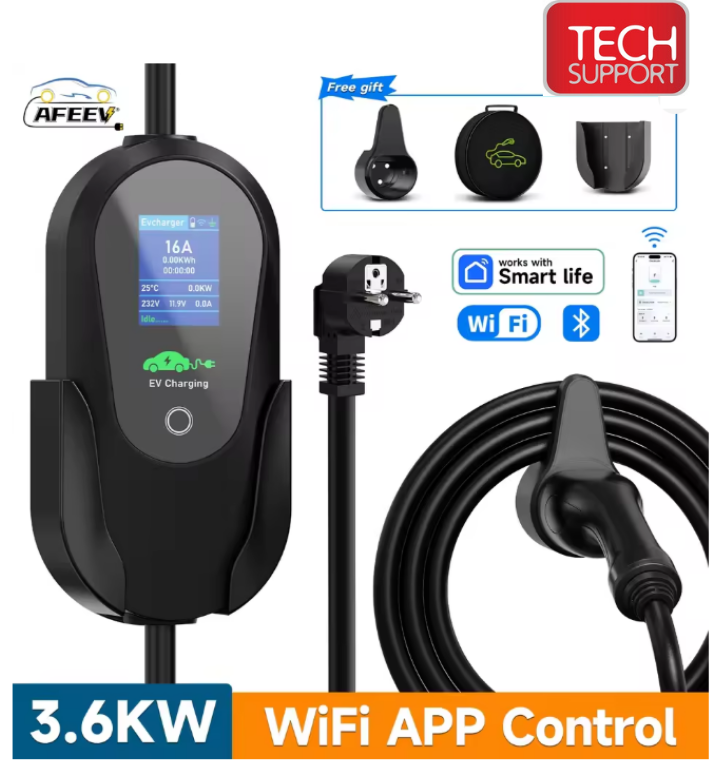

AFEEV Type 2 Portable EV Charger – 3.6kW Smart EVSE (EU Plug) 3.5 meters
Smart WiFi & APP Control
The charger features a built‑in smart mobile application that allows you to control and monitor charging remotely. You can schedule charging during off‑peak hours to reduce electricity costs, adjust the charging current from 6A to 16A, receive full‑charge notifications, and track real‑time charging status. Bluetooth control is also supported.
Scheduled Charging
The charging time can be scheduled using the Delay button, allowing charging to start at your preferred time (up to 15 hours delay). This is ideal for overnight charging and off‑peak electricity usage. The charger automatically stops when the vehicle is fully charged and can remain plugged in safely.

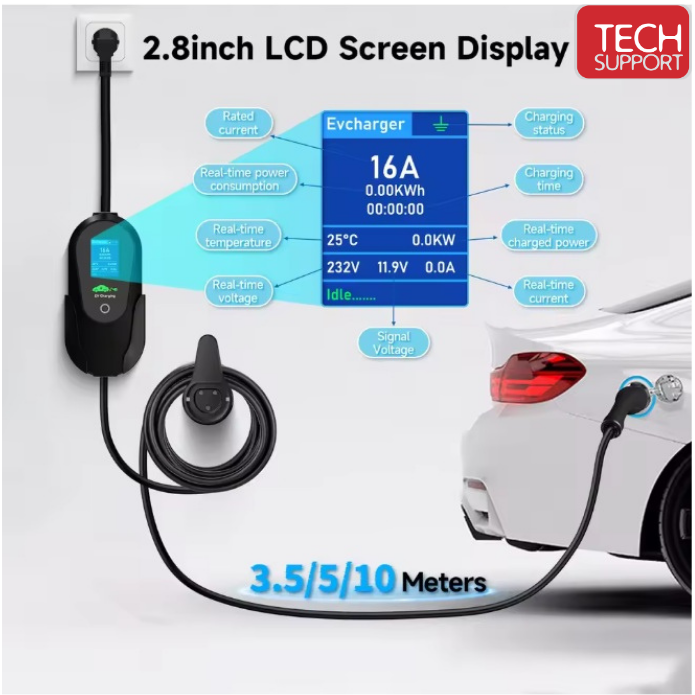

2.8‑Inch LCD Display
The EV charger controller is equipped with a 2.8‑inch LCD screen that displays real‑time information such as charging current, voltage, power status, and fault alerts. LED indicator lights provide a clear visual indication of the charger’s operating status.

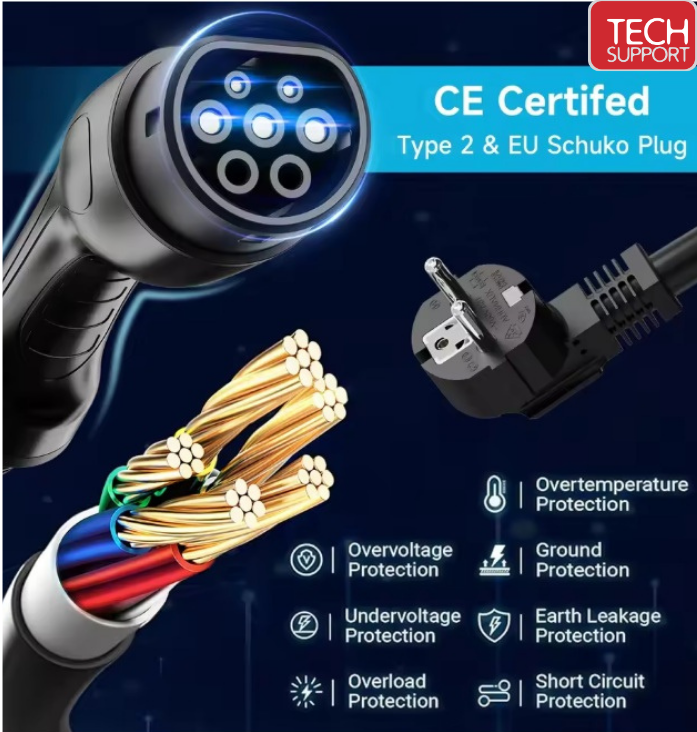

Safe & Reliable Protection
Safety is a top priority. The charger includes multiple protection systems:
- Lightning protection
- Leakage protection (Type A + DC 6mA)
- Over‑voltage protection
- Over‑current protection
- Over‑temperature protection
- Ground protection

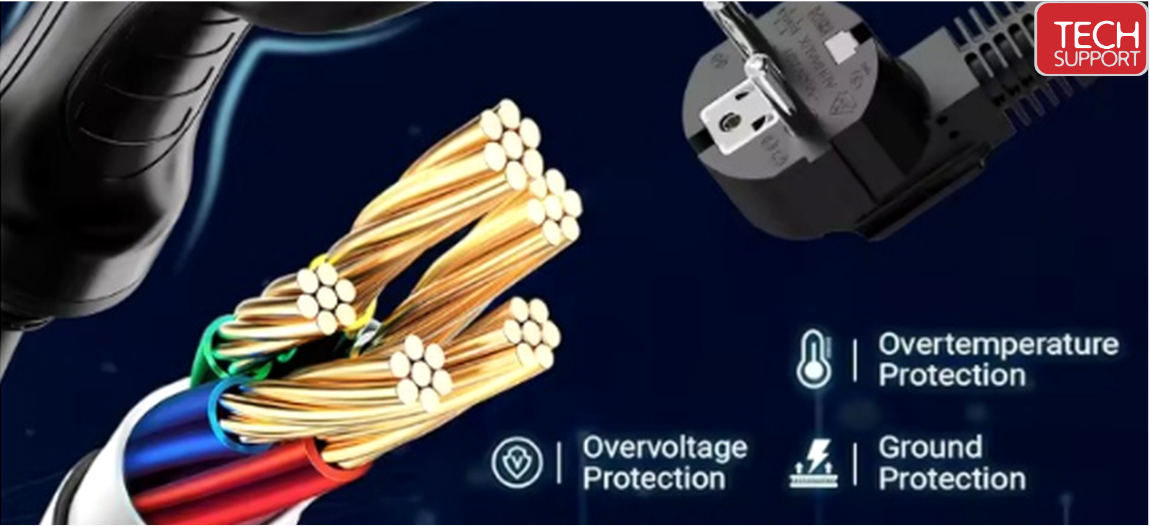

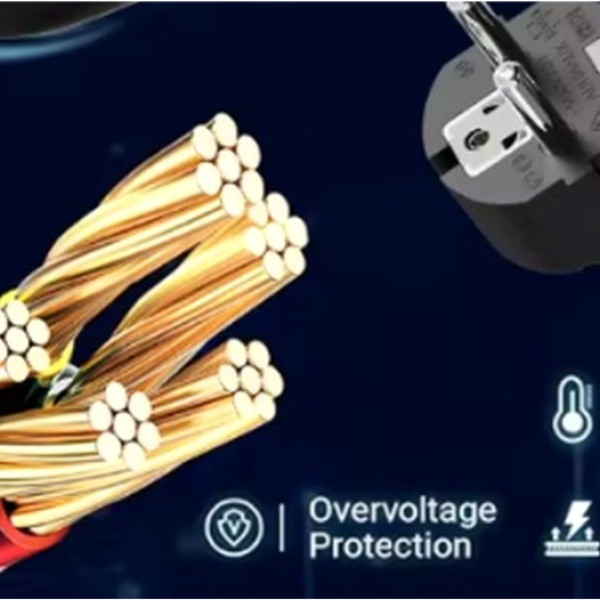

The cable is made from high‑quality, durable TPE material, and the connector is IP65 waterproof and dust‑proof, ensuring safe and reliable operation in various environments.
Fast & Efficient Charging
Operating on 110V–250V with adjustable current options (6A / 8A / 10A / 13A / 16A), the charger delivers up to 3.6kW of power for faster charging.
Note: Actual charging speed depends on the power source and the vehicle’s onboard charger capacity.
Multiple Control Methods
The charger can be operated either through the mobile APP or the control buttons on the charging box. The APP connection can be canceled at any time, and the charger can be restarted directly from the control box menu.
Current Memory Function
When charging again, the charger automatically defaults to the last used current setting, eliminating the need for manual adjustment.
Overheat Protection
If the internal temperature exceeds 85°C, the charger automatically stops charging. Charging resumes once the temperature drops to 65°C.
Technical Specifications
- Charger Type: Type 2 (IEC 62196‑2) / Type 1 (SAE J1772) / GBT 20234
- Output Power: Up to 3.6kW
- Phase: Single Phase
- Charging Current: 6A / 8A / 10A / 13A / 16A (Adjustable)
- Voltage: 110V – 250V
- Plug Type: EU Schuko Plug
- Cable Standard: 3G 2.5mm² + 1×0.5mm²
- Cable Length: 3.5m / 5m / 10m
- Protection Rating: IP65
- Operating Temperature: -30°C to +50°C
- Warranty: 2 Years
Package Includes
- Portable EV Charger ×1
- Wall‑mounted Plate ×1
- Hook ×1
- Storage Bag ×1
- User Manual ×1
